| Color: | White | Test Speed: | 30-50 Samples/hour |
|---|

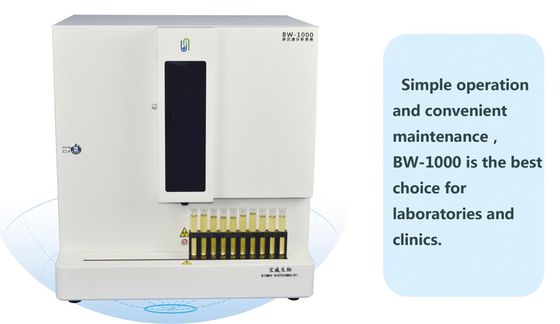

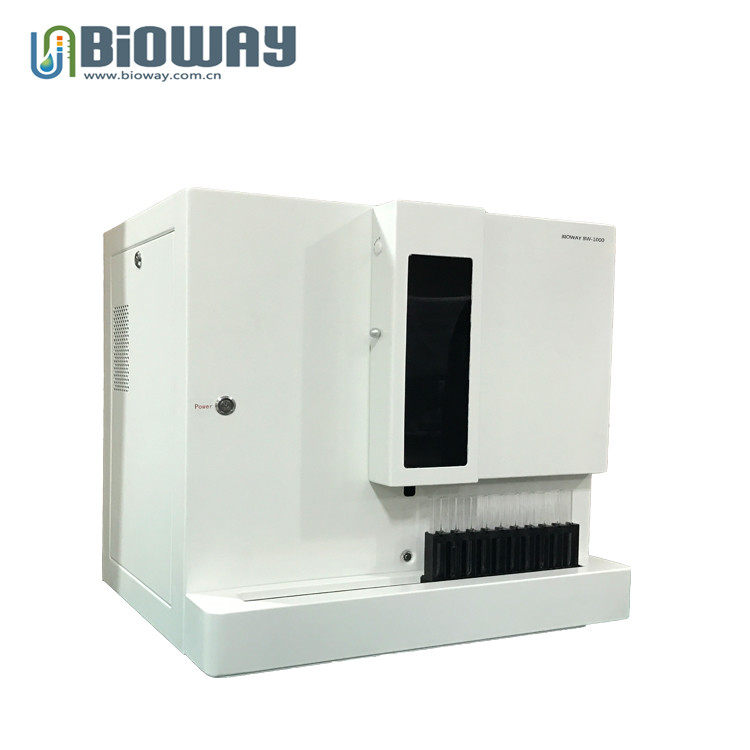

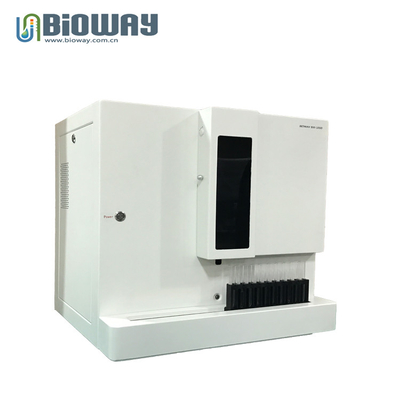

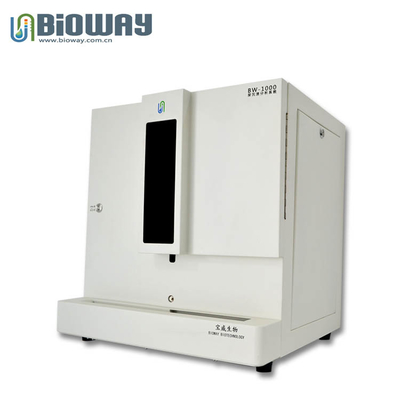

BW-1000 Full Automatic Urine Sediment Analyzer
Main Technical Parameter
| Model No. | BW-1000 |
| Test principle | World- class neutron model , apply machine vision and SVM technology to do a full range of image segmentation, identification, classification and counting. |
| Test items | RBC, WBC, Epithelial, Casts, Crystals, Bacteria, Yeast, Sperm, Mucus,WBCC and other components in urine; RBC morphology analysis (Erythrocyte phase) |
| Test speed | 30~50 samples/hour. |
| Sample volume | Minimum volume: 2 ml non-centrifugal urine ; Aspirating volume : about 1 ml. |
| Sample handling | Samples are detected directly on the machine without centrifugation. |
| Sample loading method | Sample rack loading , automatic sample mixing and aspiration. |
| Accuracy | ＞95% |
| Repeatability | CV ＜10% |
| Cross contamination rate | ＜0.05% |
| Report model | International general quantitative unit: unit /ul & HPF, complete and illustrated report, with urine chemistry test results and urine formed elements test results |
| Dimensions(main unit) | 520mm*440mm*550mm(L*W*H) |
| Weight | 35kg |
