Product Details:
Payment & Shipping Terms:
|
| Test Items: | UBG,BIL,KET,BLD,PRO,NIT,LEU,GLU,SG,PH,VITAMINC,MALB(turbidity,colour) | External Output: | RS-232 And Parallel Printer Interface |
|---|---|---|---|
| Connectivity: | Connection To DJ8602 Sediment Analyzer Via Bridge |
Test Items UBG,BIL,KET BW-901 Urine Analyzer,Strip Analyzer,Chemical And Sediment Analysis, Urine Analyser
Product introduction

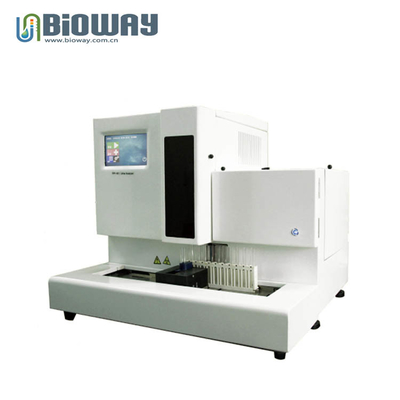

BW-901 Automatic urine analyzer is an in vitro diagnostic medical device independently researched and developed by Bioway Biological Technology Co.,Ltd. (hereinafter referred to
as the analyzer). According to the color change caused by the interaction between the reagent areas instrips and the biochemical components in urine, the analyzer provides a qualitative or
semi-quantitative urine result for Urobilinogen, Bilirubin, Ketone, Blood, Protein, Nitrite,
Leukocytes, Glucose, Vitamin C, Micro albumin and p H in the urine sample.
Main Technical Parameter
| Model No. | BW-901 |
| Test items | UBG,BIL,KET,BLD,PRO,NIT,LEU,GLU,SG,PH,VITAMINC,MALB(turbidity,colour) |
| Test principal | Strip pads:Reflectance photometer |
| Specific Gravity | With built in refractometer |
| Turbidity | With built in turibidimeter |
| Color | With built in RGB sensor |
| Wavelength of Monochromatic Light | 525nm,572nm, 610 nm,660nm |
| Test Speed | 240 samples/hour(15second/strip) |
| Sampling method | Direct dispensing on strip pads |
| On board sample capacity | 60 samples* |
| External Output | RS-232 and parallel printer interface |
| Language | English,Magyar,Polski,Russian,Portuguese,Spainsh,Italian |
| Connectivity | Connection to BW-3000 sediment analyzer via bridge |
