| Color: | White | Detection Speed: | T≤60 Samples/hour |
|---|---|---|---|
| Test Items: | RBC,WBC,epithelial,cast,bacteria,crystal,sperm And Other Components Of Clinical Requirements |

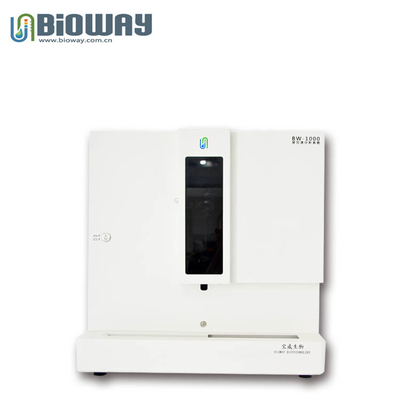

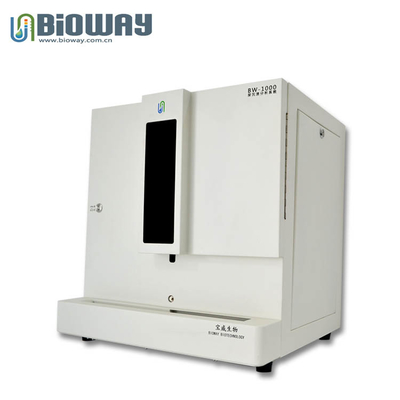

Urine Sediment Analyzer, Urine Formed Elements Analyzer, BW-1000 Full Automatic, Urine Test
Product Introduction
BW-1000 urine sediment analyzer is a high intelligent and automatic urine formed
element which is mainly used to conduct microscopic analysis in clinical units. It adopts Support
Vector Machine (SVM) mode, applies machine vision technology and follows automatic
morphological method to operate full-auto microscopic analysis. It analyzes and segments the
collected image and it can automatically recognize, count, screening urine formed element
repeatability and rapidly, to reach high recognition rate.
Product Description
| Model No. | BW-1000 |
| Test items | RBC,WBC,epithelial,cast,bacteria,crystal,sperm and other components of clinical requirements |
| Detection principle | Application of machine vision and the SVM(support vector machine)technology |
| Sample loading method | Sample rack loading under laser senors,6*10 samples load once |
| Sample handling | Detected directly without centrifugation |
| Detection speed | T≤60 samples/hour |
| Data storage | ≥600000 |
| International general quantitative unit | Objective/ul or objective/HPF |
Network communication:It can connect with semi automatic urine analyzer and combine results of urine analyzer to produce final report,which can be sent to the hospital LIS system or HIS system.
