| Display: | 240×128LCD Screen | Weight: | ≤10Kgs |
|---|---|---|---|
| Environment Condition: | 15-35℃:RH<85% | Test Speed: | 514 Strips/Hour |

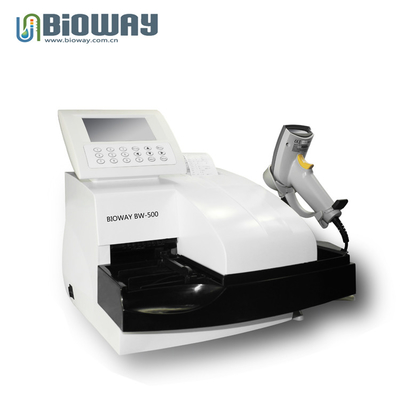

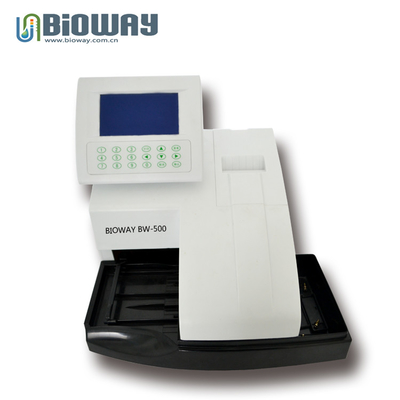

11,12 or 14 Parameters Test Speed 514 Strips/Hour BW-500 Urine Test Machine, Medical Urine Analyzer With LCD Display
Features:
Single chip control the whole system which enhance the stability and reliability.
Printer inside, small and big formats printing styles.
Connect with urine sediment analyzer and other instruments.
Test results realize the directly comparison.
Touch screen input, more humanized man-machine exchange interface.
Bar code reader system, scan and store the test results.
Main Specification
Test principle:Photoelectric colorimetric method
Wavelength:525nm,610nm,660nm
Memory Size:2000 results, can query the test result according to ID
Data Communication interface baud rate: between 1200 and 115200 bps.
Display:240×128LCD screen
Touch screen input, more humanized man-machine exchange interface.
Port:Can be conntected to urine sediment analysis system and hospital management system through RS232 port
Record mode:Thermal printing
Environment condition:15-35℃:RH<85%
Power supply:220V±10%,50-60HZ
Weight:≤10Kgs
Language: English and Chinese (other languages can be added according request).
Barcode scanner:Input information of patients conveniently(Optional part)
Units: SI, Conv.
Urine Test Strip
| BW-11s Test items |
Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose. |
| BW-12s Test items |
Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose, Microalbumin |
| BW-14s Test items |
Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose, Microalbumin,Creatinine,Calciumion |
