| Test Speed: | 160times/hour | Negative Filtration: | Urine Chemistry + Urine Sediment |
|---|---|---|---|
| Photo: | 20times+40times |
Full automatic urine chemistry ananlyzer+ Full automatic urine sediment analyzer, improve detect speed so easily!

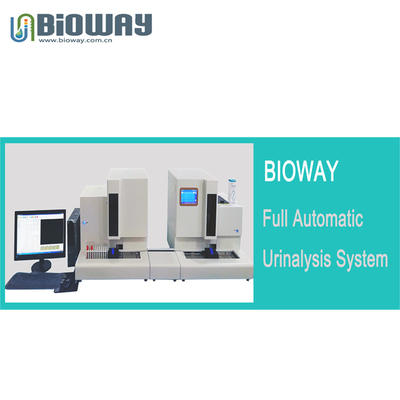

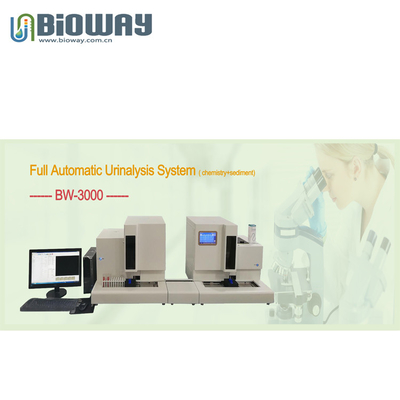

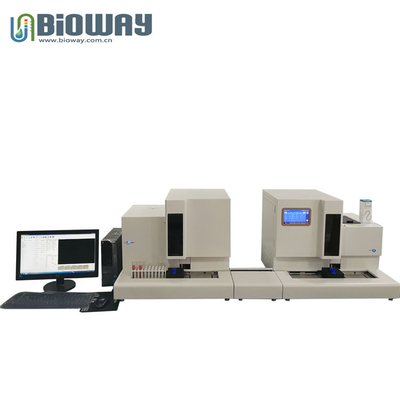

FULL AUTOMATIC URINE ANALYSIS WORKSTATIONP BW-3000 & BW-901
★Test items :
Urine Sediment Anlayzer:
Take standardized classification and quantitative counting of all components in urine;
Red blood cell, white blood cells, pus cells, squamous epithelial cells, non-squamous epithelial cells,WBCC, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus and etc.
Urine Dry Chemistry Analyzer:
Using different types of test strips can automatically analyze 10,11 and 12 chemical indicators in urine.
Urobilinogen (UBG) Bilirubin (BIL) Ketone (KET) Blood (BLD) Protein (PRO) Nitrite (NIT) Leukocyte (LEU) Glucose (GLU) Specific gravity (SG) pH (pH) Ascorbic Acid( VC) Microalbumin (MAL) and etc.
★Working principle:
Formed elements inspection: using machine vision technology to automatically identify and classify the urine formed elements with automatic morphological method.
Chemical detection: reflectance photoelectric colorimetric analysis method.
Product Description
Test items: RBC, WBC, Epithelial, Casts, Crystals, Bacteria, Yeast, Sperm, Mucus,WBCC and other
components in urine; RBC morphology analysis (Erythrocyte phase)
Detection principle:Flow cell digital imaging technology, medical image fusion technology, artificial intelligence identification technique.
| Channel: | Four channels fixed flow counting cell |
| Detection speed: | 120~160 samples/h |
| Sample volume: | Minimum volume: 3 ml |
| Aspirating volume: | l ml |
| Test sensitivity: | 5 objectives/ul |
| Accuracy: | ＞95% |
| Repeatability: | CV ＜10% |
| Cross contamination rate: | ＜0.05% |
| Data storage: | 200000 |
| Report model: | International general quantitative unit: unit /ul & HPF, complete and illustrated report, with urine chemistry test results and urine formed elements test results |
| Environment: | Temperature 15°C~35°C, Optimum temperature 20°C~25°C, Relative humidity≤75% |
| Power supply: | AC 100-240V 50/60HZ |
| Dimensions(main unit): | 660mm*440mm*570mm(L*W*H) |
| Weight: | 33KG |
