Product Details:
Payment & Shipping Terms:
|
| Test Speed: | 30-50 Samples/hour |
|---|

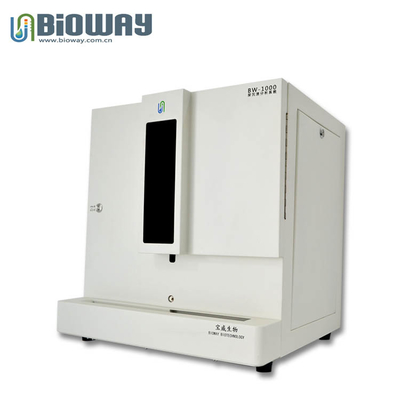

BW-1000 Full Automatic Urine Sediment Analyzer
BW-1000 SPECIFICATION
Inspection principle: Using machine vision technology: automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods.
Test items: Red blood cells, white blood cells, pus cells, squamous epithelial cells, non-squamous epithelial cells, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus, etc.
Test speed: 30-50 samples/hour.
Detection mode: The microscope counts and classifies target identifications such as red blood cells, white blood cells, and crystals.
Sample quantity: Minimum urine volume 2ml, minimum injection volume 0.5ml
Sample processing: The sample can be directly tested without centrifugation.
Injection method: Automatic trail injection, 10 samples on the machine at the same time.
Accuracy: more than 90% (Artificail auxiliary judgments).
Repeatability test: CV < 10%
Carrying pollution rate: < 0.05%
False negative rate: < 3%
Report form: xx/u l international universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis
Dimensions: 420mm x 340mm x 395mm (length x width x height).
Weight: 15kg
Main Technical Parameter
| Model No. | BW-1000 |
| Test principle | World- class neutron model , apply machine vision and SVM technology to do a full range of image segmentation, identification, classification and counting. |
| Test items | RBC, WBC, Epithelial, Casts, Crystals, Bacteria, Yeast, Sperm, Mucus,WBCC and other components in urine; RBC morphology analysis (Erythrocyte phase) |
| Test speed | 30~50 samples/hour. |
| Sample volume | Minimum volume: 2 ml non-centrifugal urine ; Aspirating volume : about 1 ml. |
| Sample handling | Samples are detected directly on the machine without centrifugation. |
| Sample loading method | Sample rack loading , automatic sample mixing and aspiration. |
| Accuracy | ＞95% |
| Repeatability | CV ＜10% |
| Cross contamination rate | ＜0.05% |
| Report model | International general quantitative unit: unit /ul & HPF, complete and illustrated report, with urine chemistry test results and urine formed elements test results |
| Dimensions(main unit) | 520mm*440mm*550mm(L*W*H) |
| Weight | 35kg |
