| Test Speed: | 514 Strips/Hour | Wavelength: | 525nm,610nm,660nm |
|---|---|---|---|
| Weight: | 10Kgs |

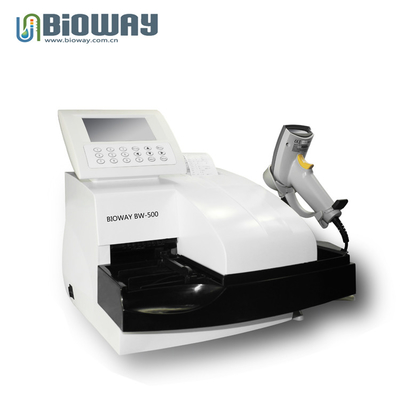

11,12 or 14 Parameters Test Speed 514 Strips/Hour BW-500 Urine Test Strip Analyzer for Use with Urine Test Strips
Features:
Single chip control the whole system which enhance the stability and reliability.
Printer inside, small and big formats printing styles.
Connect with urine sediment analyzer and other instruments.
Test results realize the directly comparison.
Touch screen input, more humanized man-machine exchange interface.
Bar code reader system, scan and store the test results.
Main Specification of BW-500
| Model | BW-500 |
| Test principle | Photoelectric colorimetric method |
| Wavelength | 525nm,610nm,660nm |
| Memory Size | 2000 results, can query the test result according to ID |
| Data Communication interface baud rate | between 1200 and 115200 bps. |
| Display | 240×128LCD screen |
| Port | Can be conntected to urine sediment analysis system and hospital management system through RS232 port |
| Record mode | Thermal printing |
| Environment condition | 15-35℃:RH<85% |
| Power supply | 220V±10%,50-60HZ |
| Weight | 10Kgs |
| Language | English and Chinese (other languages can be added according request). |
| Barcode scanner | Input information of patients conveniently(Optional part) |
| Units | SI, Conv |
| Optional: | 11,12or14 parameters |
Urine Test Strip
BW-11s Test items: Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity,
Ascorbic Acid, Ketone, Bilirubin, Glucose.
BW-12s Test items: Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity,
Ascorbic Acid, Ketone, Bilirubin, Glucose, Microalbumin.
BW-14s Test items: Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity,
Ascorbic Acid, Ketone, Bilirubin, Glucose, Microalbumin,Creatinine,Calcium ion
